ECM Motor Tester Compatible with Multiple ECM Motors for Accurate Testing

About This

• High Compatibility and Wide Application: Engineered for many motors like ECM 2.3, ECM 3.0, X13 Evergreen. Suitable for HVAC, industrial machines, and home appliances, ensuring broad use
• User Friendly Design: Offers an easy "Go No Go" result. Simple for pros and DIYers to diagnose motor issues without complex skills
• Safety Oriented: Has short circuit protection for tester and motor. The 24VAC indicator light clearly shows the status
• Reliable Quality: After improvements, it's made with high quality parts for long lasting, accurate performance

Overview

• Brand : FUHUOLU
• Power Source : Battery Powered
• Style : ECM Tester
• Color : ORENGE

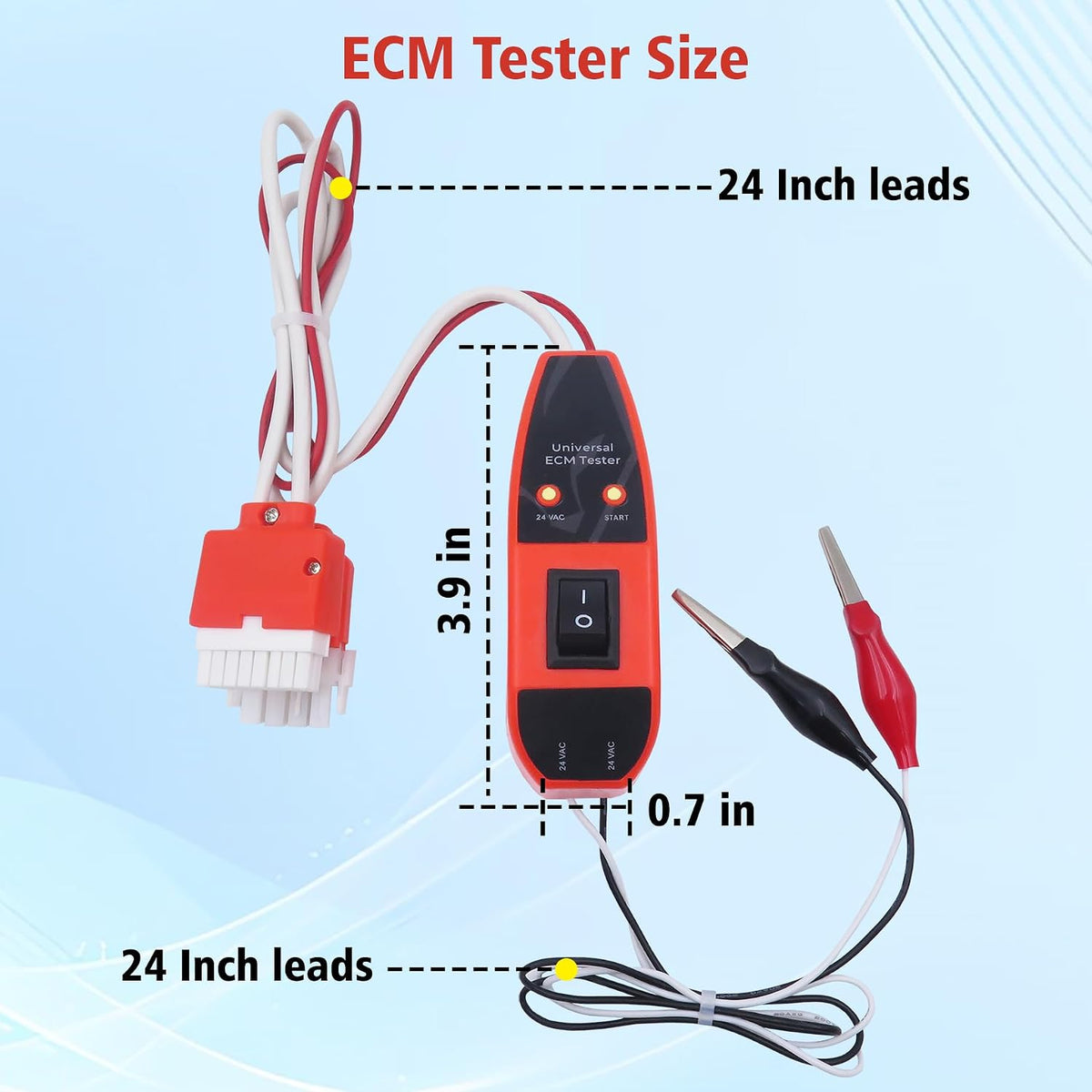

• Item dimensions L x W x H : 7.8 x 3.9 x 7.76 inches

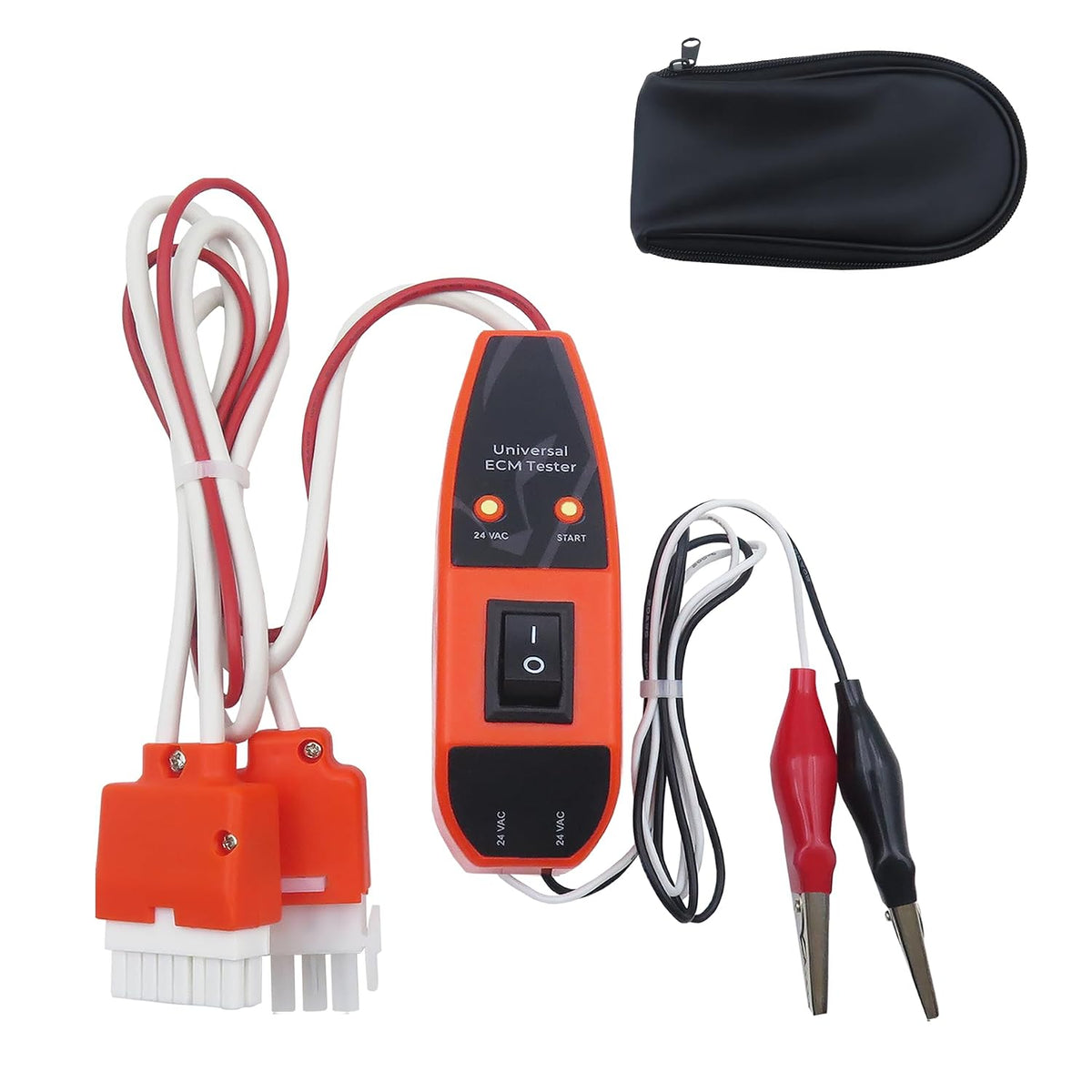

• ECM Tester Main Unit

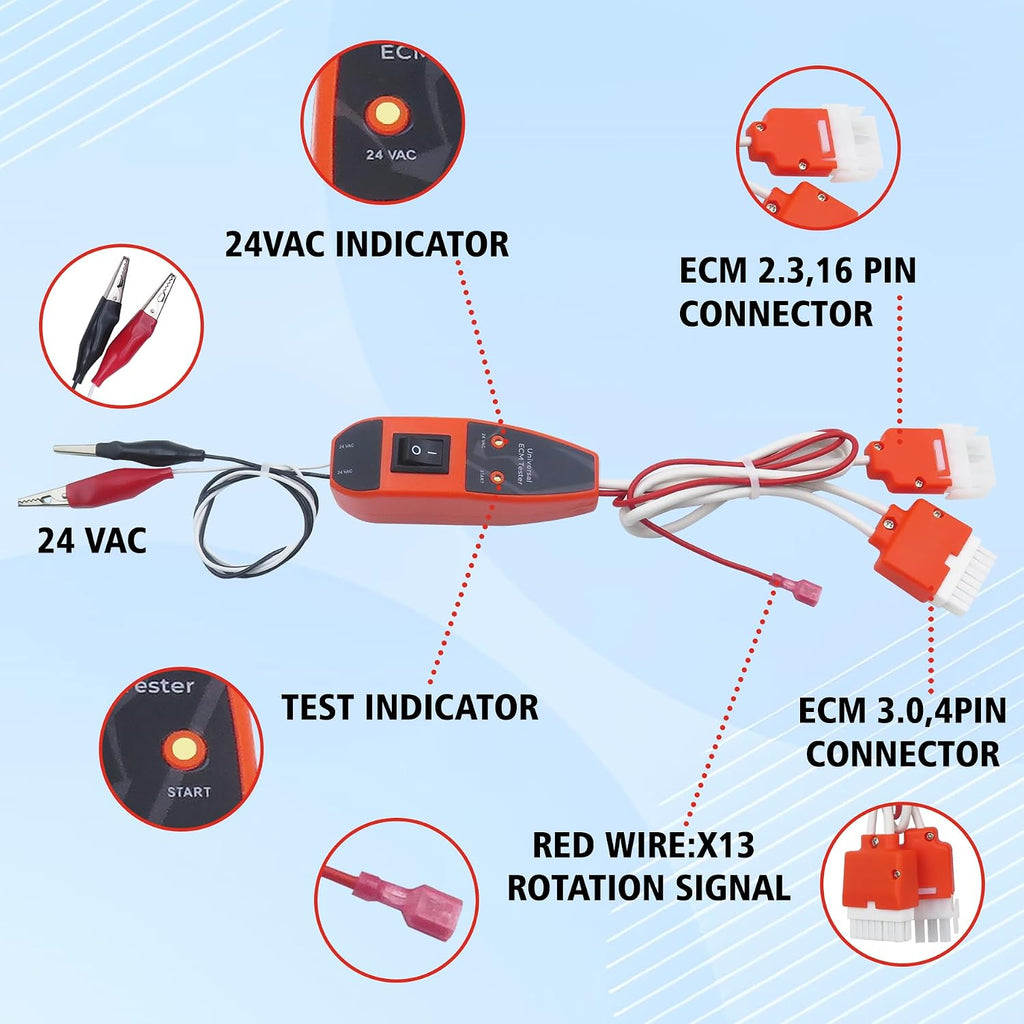

• Correct wiring is key to accurate diagnosis with the tester. Match the connector type to the motor model and strictly follow the keyed design orientation.
• The ECM Tester is a specialized tool for diagnosing 2.0/2.3/Eon/3.0 model ECM motors. It can quickly identify "motor control module faults", "system control board faults" or "communication harness faults" to avoid misdiagnosing motor issues.

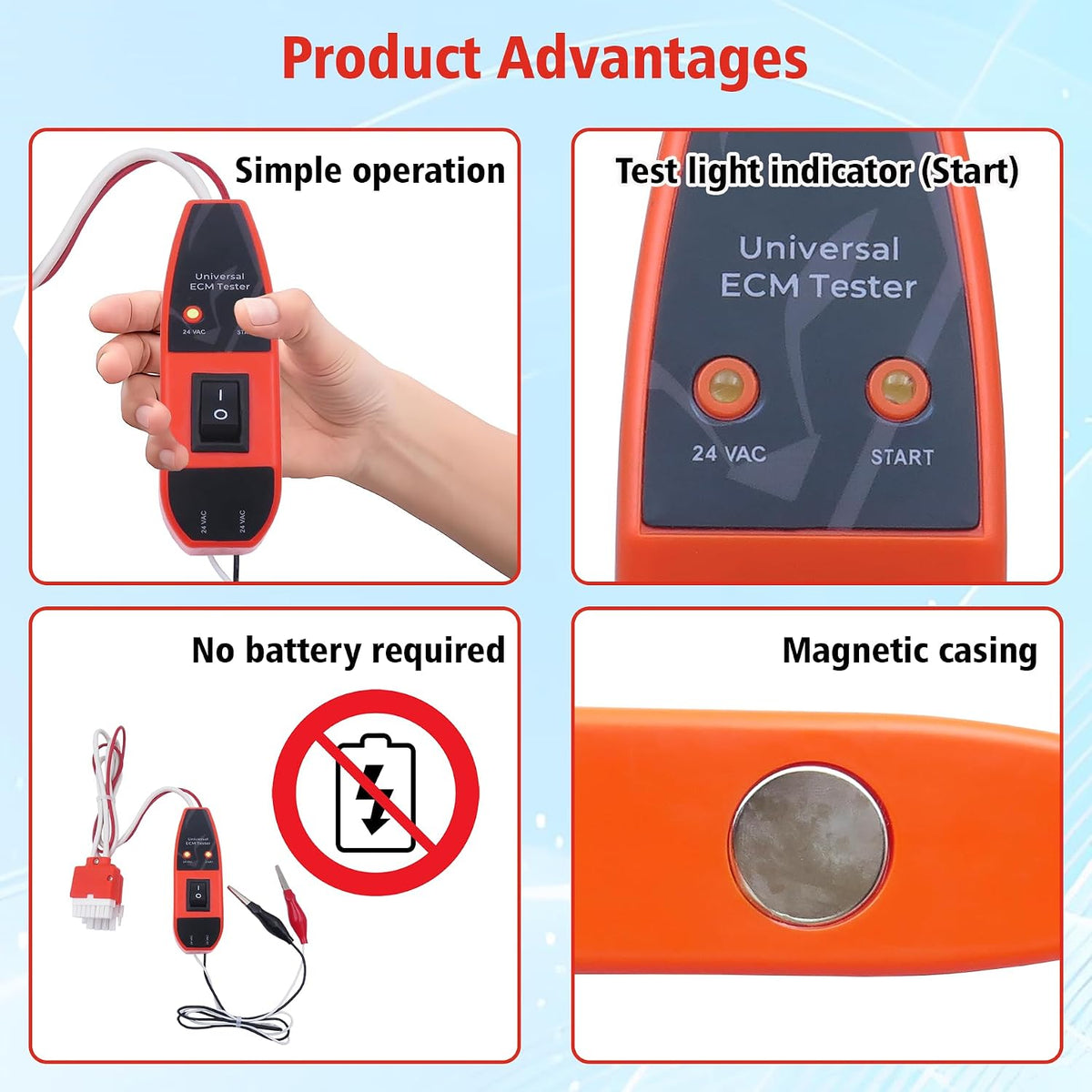

• Key Design and Safety Features24-Inch Leads : The extra-long wires give you flexibility to reach connectors in tight HVAC cabinets (no more struggling with short, restrictive cables). Short Circuit Protection : Built-in safeguards prevent damage to the tester (or the motor) if wiring errors occur—critical for safe, stress-free diagnostics. Magnetic Case : Stick the tester to metal HVAC components (like unit frames) to keep it hands-free while you work—no more fumbling to hold the tool and connect wires. 24VAC Operating Voltage : Matches the standard low-voltage power of HVAC control systems, so it integrates seamlessly with the equipment you service. As an HVAC technician, you know ECM motor issues often lead to guesswork (and unnecessary motor replacements). This tester cuts through the confusion: What It Solves for You
• It works with common ECM models (2.0/2.3/Eon/3.0) to quickly identify if the problem is a faulty motor control module, a bad communication harness, or a system control board issue. No more wasting time (or client money) swapping parts “to test”—this tool gives you clear, actionable results in minutes.
• Whether you’re a seasoned HVAC pro or growing your toolkit, the ECMPRO Tester streamlines ECM motor diagnostics: it’s easy to use (no complex training needed) and built to handle the daily demands of on-site repairs. Who Needs This?
• If you want to work faster, reduce callback rates, and stop overspending on unnecessary motor replacements—this tester is non-negotiable for your van.
• As an HVAC technician, you know the headache of troubleshooting ECM motors: guesswork leads to unnecessary motor replacements, wasted time on misdiagnoses, and frustrated clients. The ECM Tester isn’t just another tool—it’s your shortcut to fast, accurate, cost-saving diagnostics that elevate your work.
• Here’s why this tool is non-negotiable for your toolkit
• Stop wasting hours on ECM motor headaches. Grab the ECM Tester today to work faster, smarter, and keep your HVAC repair services ahead of the curve.
• First, unplug the motor’s communication connector (16-pin/4-pin)
• Connect the tester’s corresponding communication connector to the motor interface
• Reconnect the motor’s 5-pin power connector (for 2.0/2.3/Eon models)
• Attach the tester’s alligator clips to a 24VAC power source
• Disconnect HVAC system power and ensure the blower wheel comes to a complete stop before operation
• Confirm the motor model (only applicable to 2.0/2.3/Eon/3.0; not compatible with 2.5/X13, etc.)
• Prepare corresponding connectors (e.g., 16-pin/4-pin communication connectors, 16-4 pin adapter)
• Key Design and Safety Features24-Inch Leads : The extra-long wires give you flexibility to reach connectors in tight HVAC cabinets (no more struggling with short, restrictive cables). Short Circuit Protection : Built-in safeguards prevent damage to the tester (or the motor) if wiring errors occur—critical for safe, stress-free diagnostics. Magnetic Case : Stick the tester to metal HVAC components (like unit frames) to keep it hands-free while you work—no more fumbling to hold the tool and connect wires. 24VAC Operating Voltage : Matches the standard low-voltage power of HVAC control systems, so it integrates seamlessly with the equipment you service.
