Gas Fireplace Remote Control Kit,Thermostat, On/Off, Countdown Timer,DC Adapter Option,for Millivolt Valve System, Replace for skytech 1420-A,1420TH-A,1001-A,1001TH-A, Acumen RCK,and More

About This

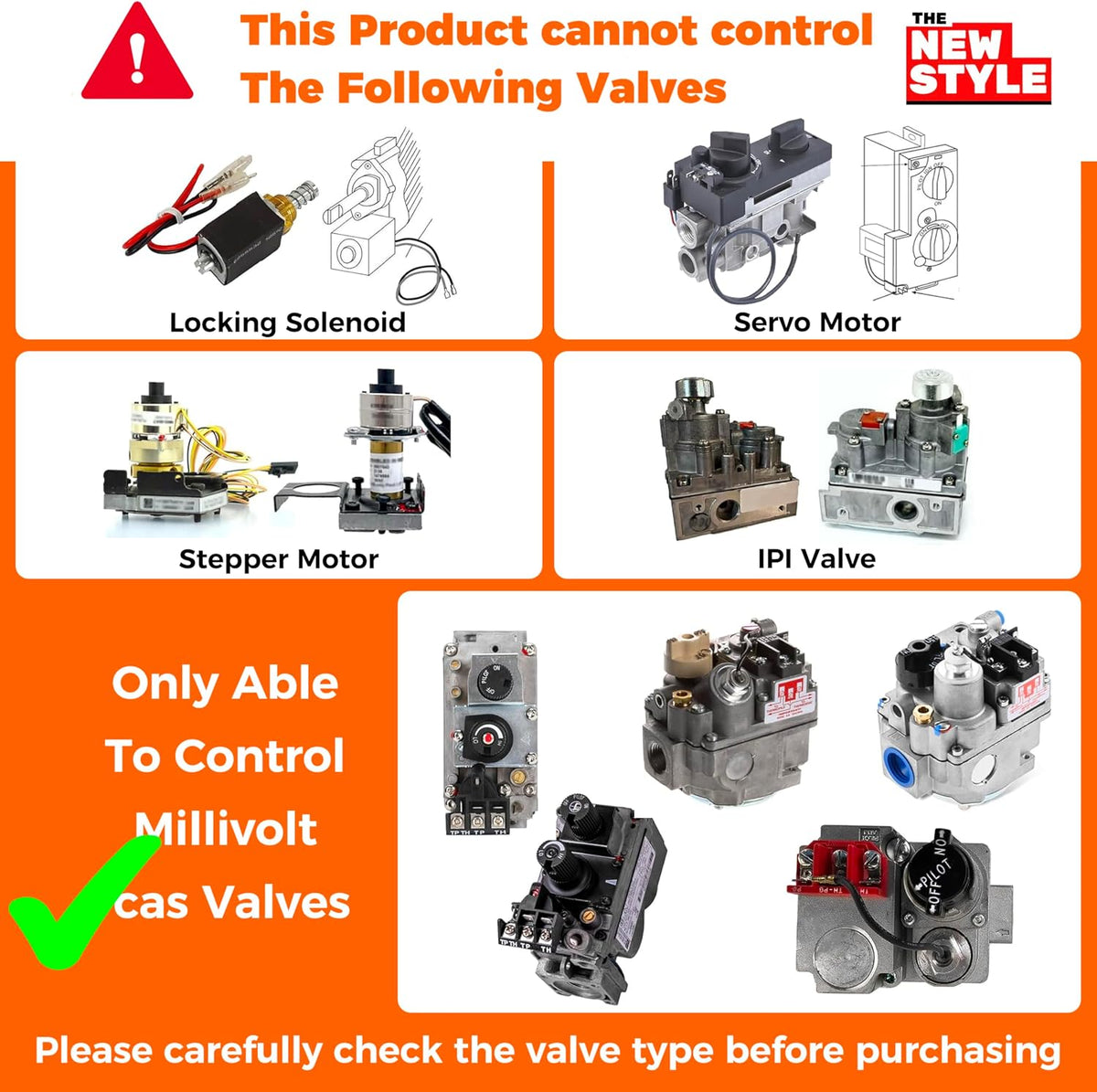

• Attention :This kit does not work with Latching Solenoid gas valve systems please read your fireplace directions for correct application before purchase. these are some models that is not compatible with this remote: Skytech : Con TH - Con TH AF-LMF-RV Valve Un3-Skytech MRCK TH SR-1001TH - un3rxHargrove On/Off , High/Low Variable flame- TSTSC Pleasant Hearth VFF-PH32DRVFF2-PH32DRB gh03 r-gda gh03 r-rg04 1m-gda gh03 r-g6r h3t5 zv- rg042m- Pleasant Hearth VFL2-VO24DR- GLD2470R- RCAF 1 -RCAF 2
• Compatible with some common models Skytech :1001-MRCK(SR-1001) -1001t -1001TH-3002-1420-SKY-3003P-TX/SKY-3003-TX-Skytech Stat IV Heat-N-Glo-TM/R2 -TS /R-2-TS-3- Sky-Ws-TM-3- 8001-TX -RC300-HNG-RC400-RCT-MLT-HHT- HNG- 2166-330-5301-7060-1420TH-3301P2-1401-3003-3002-5320P-5320 -1420/LCD - 3001-1001-SR/P-1001D-1410TH-1410T/LCD-5301P - White Mountain Hearth - Hargrove On/Of -Rasmussen SR-MV1- Kingsman - Superior -Acumen RCK-IW - Real Fyre - iFlame - Grand Canyon - Regency Fire 910-399- 911=175/p - P121-NG P121-LPG - Napoleon F45 GL22 GL28 GL32 GD36PTR central
• Dual-Function Fireplace Control: Remote control supports simple ON/OFF operation or thermostatic mode for automatic temperature regulation and consistent comfort.also This remote control system can operate with a built-in countdown timer when the transmitter is in the ON or THERMO modes (THERMO or ON must be displayed on the screen). Note: This is a countdown timer and the remote cannot operate as a clock timer For Safety ther is a child proof protection lock
• Flexible Power Options: Receiver operates on batteries or via AC 100–230VAC to 5VDC 1A adapter (DC socket input), allowing plug-in power to eliminate frequent battery replacements and reduce long-term costs.
• Easy access to the receiver's battery compartment uses a sliding battery cover , Receiver connects to any standard millivolt gas valve system Includes remote, receiver, wall plate, and wiring to connect receiver to valve, AC100~230VAC to 5VDC 1A Adaptor

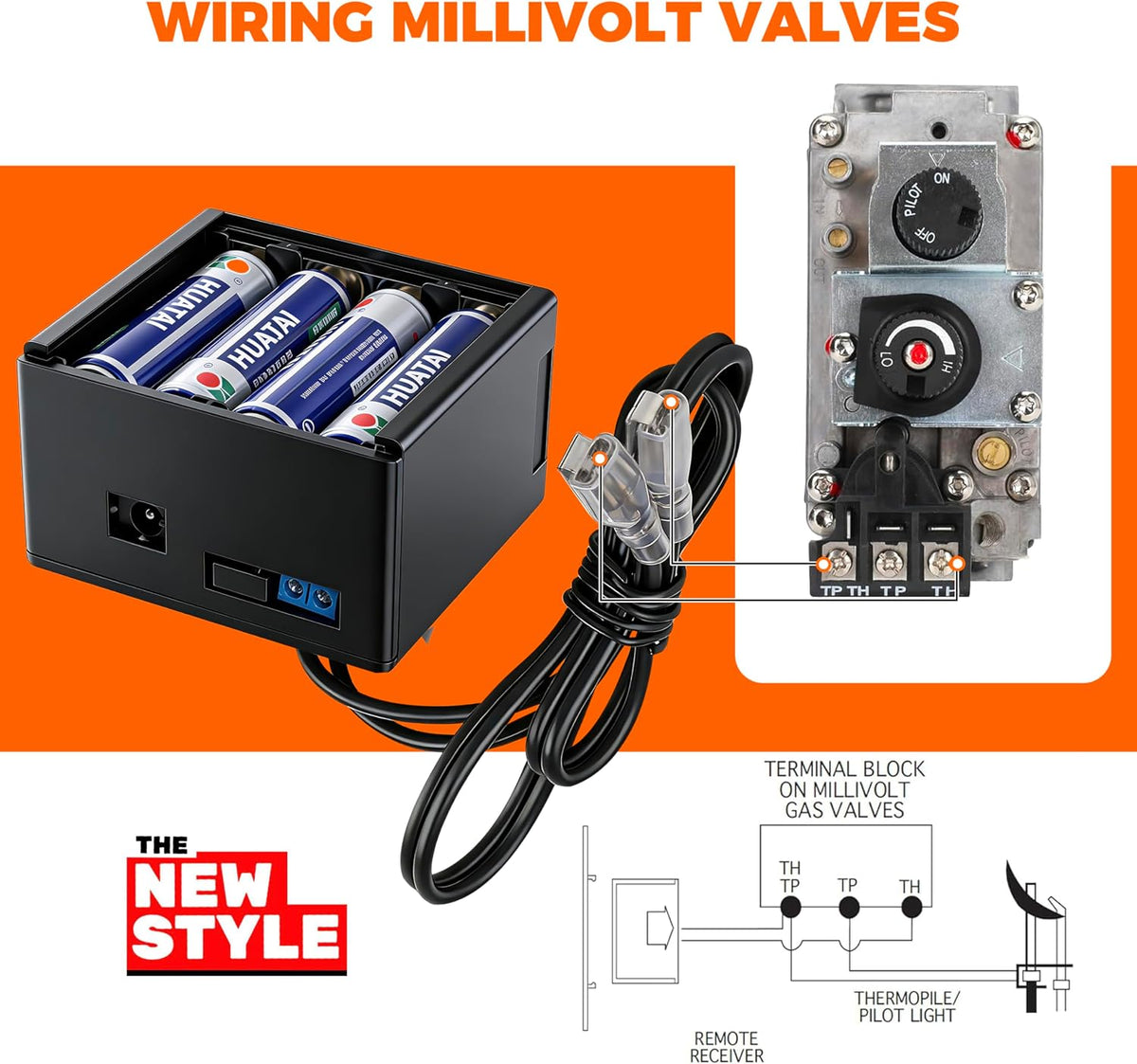

• Pre-programmed for quick Installation simply connect the two terminals to the TH and TH/TP terminals of the millivolt valve. Pairing : Manufacture have done default programming ,simply insert the batteries and slide the receiver switch into remote position, and from the remote you can turn the fireplace ON/OFF.
• Safety Informations : This remote-control system is designed for use with a millivolt or 24V gas valve system. Do not use this remote-control system on applications with voltages above 24 Volts AC/DC and 1 amp current.The remote receiver should be kept away from temperatures exceeding 130º F
• LEARNING TRANSMITTER TO RECEIVER (Manufactory have done the default setting learning, User can skip learning if not change the DIP Switches Security Codes) 1. Put the receiver slide switch to “REMOTE” location. Using a paper clip gently press and Hold the LEARN button on the receiver , the receiver will emit an audible “beep 2. After the receiver emits the beep. Press the “ON or OFF“button From the Transmitter, the remote will signal and receiver will emit several beeps indicating that the transmitter’s has been successfully learned 3. If learning failed , check the batteries are well installed and have enough power then repeat the learning

Overview

• Brand : The-new-style
• Model Name : TNS-DCRCB06A
• Color : Black
• Will this kit work with my fireplace?
• This kit is compatible with millivolt gas fireplace valve systems that have an approved external ON/OFF control input. Use the supplied remote and receiver together.
• Can I keep my old receiver?
• Use this transmitter with its supplied matched receiver. Similar buttons or appearance do not establish radio compatibility.
• Does it control flame height?
• This is an ON/OFF switching kit. Thermostat operation, where provided, cycles the appliance; it does not directly adjust a servo flame motor.
• What about electronic ignition or proprietary controls?
• How do I pair the remote?
• Follow this model’s LEARN sequence in the complete manual.
• Shop The New Style kits
• Learning and pairing The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked. Remote and receiver learning / pairing
• Millivolt valve connections The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked. Millivolt valve connections
• RCB06A-DC setup and operation The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked. RCB06A setup and controls
• Will this kit work with my fireplace? This kit is compatible with millivolt gas fireplace valve systems that have an approved external ON/OFF control input. Use the supplied remote and receiver together.
• Can I keep my old receiver? Use this transmitter with its supplied matched receiver. Similar buttons or appearance do not establish radio compatibility.
• Does it control flame height? This is an ON/OFF switching kit. Thermostat operation, where provided, cycles the appliance; it does not directly adjust a servo flame motor.
• How do I pair the remote? Follow this model’s LEARN sequence in the complete manual.
